一、完整工藝流程

1、 Complete process flow

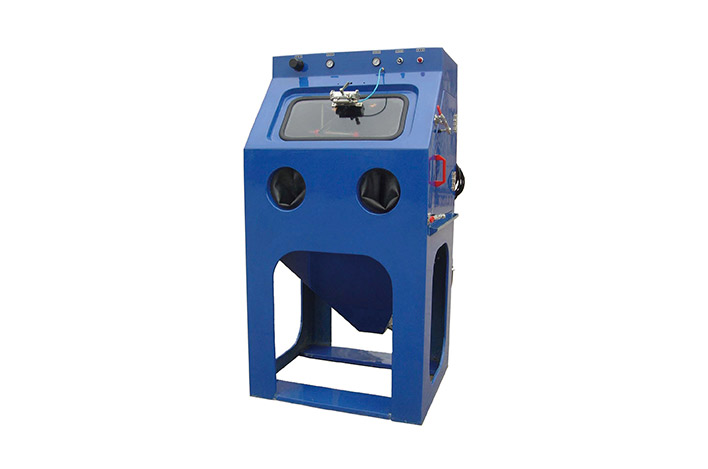

自動化粉末噴涂生產線包含以下標準工藝流程：上件工序→前處理工序（噴拋丸除銹/自噴式）→烘干工序→靜電粉末噴涂系統→固化處理→下件工序。在前處理階段，必須對工件進行全面的表面預處理，包括但不限于脫脂除油、防銹處理、氯硅烷轉化處理以及多道水洗等工序。對于特殊要求的工件，還需增加機械打磨和噴砂處理等工藝，以顯著提升涂層結合強度。只有經過規范前處理的工件，才能確保獲得均勻的膜厚分布和優異的涂層附著力。噴涂完成后，必須在規定時間內將工件送入固化爐進行烘烤，使粉末涂層在受熱條件下按照不同工藝要求形成完整的高性能涂層。目前行業普遍采用的固化方式主要包括熱風循環烘烤和輻射加熱烘烤兩大類型。

The automated powder coating production line includes the following standard process flow: upper part process → pre-treatment process (spray shot blasting rust removal/self spraying) → drying process → electrostatic powder coating system → solidification treatment → lower part process. In the pre-processing stage, the workpiece must undergo comprehensive surface pretreatment, including but not limited to degreasing and degreasing, rust prevention treatment, chlorosilane conversion treatment, and multiple water washing processes. For workpieces with special requirements, it is necessary to add processes such as mechanical polishing and sandblasting to significantly improve the bonding strength of the coating. Only workpieces that have undergone standardized pre-treatment can ensure uniform film thickness distribution and excellent coating adhesion. After the spraying is completed, the workpiece must be sent to the curing furnace for baking within the specified time, so that the powder coating can form a complete high-performance coating according to different process requirements under heating conditions. The commonly used curing methods in the industry currently include two types: hot air circulation baking and radiation heating baking.

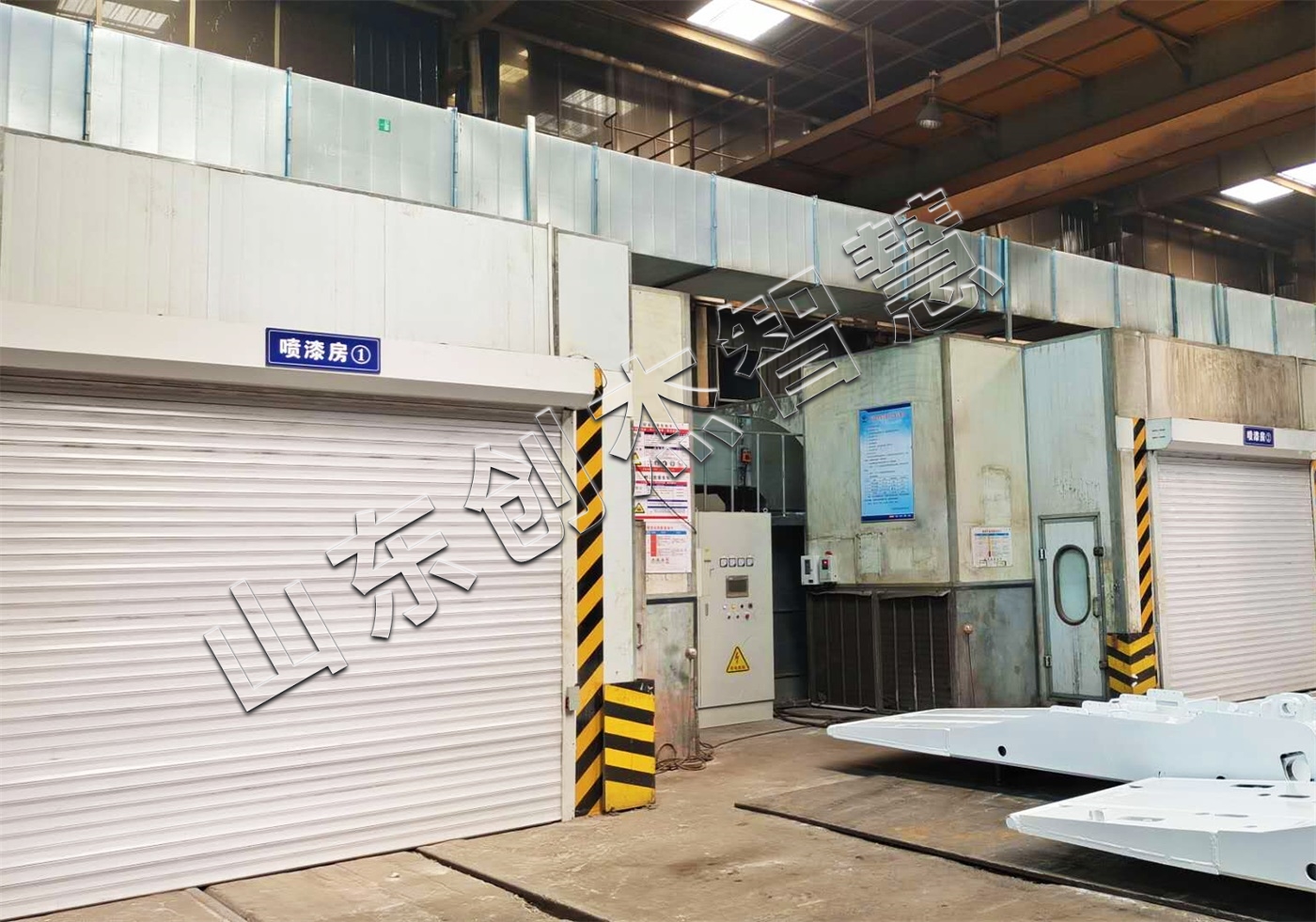

二、靜電粉末噴涂系統構成

2、 Composition of electrostatic powder spraying system

完整的靜電粉末噴涂系統主要由以下幾個核心部件組成：專業噴粉房、高效供粉設備、一套或多套靜電噴槍及智能控制系統、高壓靜電發生器以及先進的粉末回收處理裝置。噴粉房采用優質不銹鋼板材制造，具有優異的耐用性和防腐性能；其內部氣流分布基于流體力學原理進行優化設計，既能有效防止粉末外溢，又能在噴涂區域形成穩定的氣流場，最大限度地降低排風氣流對噴涂過程的干擾。

The complete electrostatic powder spraying system mainly consists of the following core components: a professional powder spraying room, efficient powder supply equipment, one or more sets of electrostatic spray guns and intelligent control systems, high-voltage electrostatic generators, and advanced powder recycling and processing devices. The powder spraying room is made of high-quality stainless steel plates, which have excellent durability and anti-corrosion performance; The internal airflow distribution is optimized based on fluid mechanics principles, which can effectively prevent powder overflow and form a stable airflow field in the spraying area, minimizing the interference of exhaust airflow on the spraying process.

三、供粉系統工作原理

3、 Working principle of powder supply system

在供粉系統中，粉末通過壓縮空氣的作用保持流化狀態，隨后利用虹吸原理被流動氣流攜帶，形成均勻的粉氣混合物。該混合物經過文丘里管或HDLV粉泵、輸粉管道，最終輸送至噴槍。系統可精確調節輸氣量和霧化氣壓參數，靈活控制出粉量和粉末霧化狀態，從而實現不同涂層厚度的精確控制，滿足各類產品的差異化需求。高性能供粉設備具備強大的輸送能力，即使噴槍的輸粉管長達50英尺，仍能提供充足的壓力和流量保證穩定噴涂。

In the powder supply system, the powder is maintained in a fluidized state by the action of compressed air, and then carried by the flowing airflow using the siphon principle to form a uniform powder air mixture. The mixture is transported through a Venturi tube or HDLV powder pump, powder conveying pipeline, and finally delivered to the spray gun. The system can accurately adjust the parameters of gas transmission and atomization pressure, flexibly control the powder output and powder atomization state, thereby achieving precise control of different coating thicknesses and meeting the differentiated needs of various products. High performance powder supply equipment has strong conveying capacity, even if the powder delivery pipe of the spray gun is up to 50 feet long, it can still provide sufficient pressure and flow to ensure stable spraying.

四、靜電噴槍技術特點

4、 Technical characteristics of electrostatic spray gun

專業靜電噴槍的結構設計必須滿足粉末充電的嚴格要求，其功能性設計需適應各種噴涂作業方式和不同形狀工件的噴涂需求。與傳統的液體噴涂技術相比，靜電粉末噴涂形成的涂層在機械強度、附著力、耐腐蝕性、耐老化性等方面具有顯著優勢，在同等效果下更具成本效益。

The structural design of professional electrostatic spray guns must meet the strict requirements of powder charging, and their functional design needs to adapt to various spraying operation methods and the spraying needs of different shaped workpieces. Compared with traditional liquid spraying techniques, coatings formed by electrostatic powder spraying have significant advantages in mechanical strength, adhesion, corrosion resistance, aging resistance, etc., and are more cost-effective under the same effect.

五、固化室結構設計

5、 Structural design of solidification chamber

粉末固化室在結構上主要分為直通式固化室和橋式（或π型）固化室兩種類型。為有效減少熱量散失對車間環境的污染及能源浪費，高溫粉末固化室通常采用橋式結構設計；而脫水烘干室則可根據實際情況選擇直通式或橋式結構。采用直通式設計的烘干室必須在進出口處設置高效風幕或自動門系統，以最大限度減少熱量損失。這種科學的結構設計不僅能提升能源利用率，還能顯著改善車間工作環境。

The powder solidification chamber is mainly divided into two types in structure: straight through solidification chamber and bridge (or π - type) solidification chamber. To effectively reduce the pollution and energy waste caused by heat loss in the workshop environment, the high-temperature powder solidification chamber is usually designed with a bridge structure; The dehydration and drying chamber can choose a straight through or bridge structure according to the actual situation. Drying rooms with a straight through design must be equipped with efficient air curtains or automatic door systems at the inlet and outlet to minimize heat loss. This scientific structural design not only improves energy efficiency, but also significantly improves the working environment in the workshop.
